100mm Busduct Short Circuit Withstand Insulated Testing Machine

Name: 100mm Busduct Short Circuit Withstand Insulated Testing Machine
Brand: Kiande
Price: 1 USD

Quality 100mm Busduct Short Circuit Withstand Insulated Testing Machine for sale

Brand Name : Kiande

Model Number : KD-JCX/NC-E/H -4

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : customized

Payment Terms : T/T, L/C

Supply Ability : 10set/ month

Delivery Time : 45 working days

Packaging Details : plywood case

Name : Machine for Busduct

Power : 380~415VAC 50~60Hz 3kW

Busbar Height : 100mm~650mm

Busbar Length : 500mm~3000mm

Grounding Test : 0~25A

Insulation Test : 1~1000V

High Voltage Withstanding Test : 0~5000V

Servo Nos : L6200mm*W800mm*H800mm

Contact Now

Machine for Busduct Short-Circuit Withstand and insulated Testing

Feature

Customized
testing report can be saved, printed on site and recorded remotely. Its format can be set according to customer’s requirements.

Fuction

Short circuit withstanding test, insulation resistance test and grounding test

Function introduction

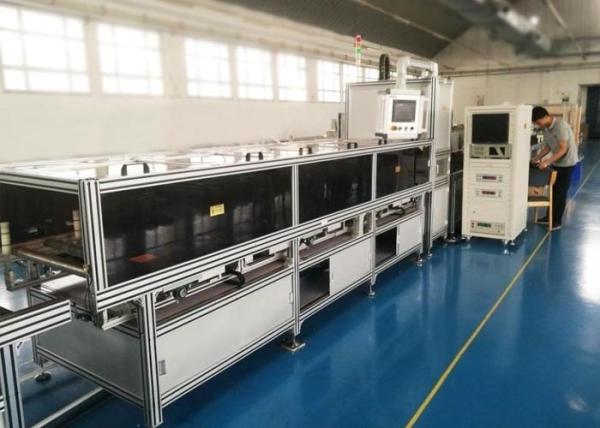

Manual Busbar Inspection Line is mainly used for inspecting short straight busbar, elbow busbar, terminal busbar and etc.. It’s composed of two parts: fixture positioning and main inspection instruments. Fixture positioning part is operated manually while inspection instruments will test the busbar and generate the report automatically.

Equipment data on Manual busbar inspection line

No.	Parameters
Model	KD-JCX/M-4
Busbar Height	100mm~650mm
Busbar Length	500mm~3000mm
Suitable Busbar Type	Straight busbar
Position Type	Unilateral
Printing System	Bar code printing/ Report printing( optional)
High Voltage Withstanding Test	0~5000V
Insulation Test	1~1000V
Grounding Test	0~25A
Power	380~415VAC 50~60Hz 3kW
Equipment Dimension	L6200mmW800mmH800mm

100mm Busduct Short Circuit Withstand Insulated Testing Machine
